Thursday, January 20, 2022

The suburbanization of Baltimore's waterfront

When Otis Rolley was Planning Director there was much talk about the MIZOD, anoverlay that protected industrial  waterfront areas from being gentrified into condos and apartments like so many parcels before, from Harborview to the Ritz Carlton, to the Anchorage and Canton Cove.

Locke Insulators: Not a trace left in the proposed plan

But in 2017 when the Locke Insulator company announced that it will close its 24 acre waterfront facility in Port Covington (known to all Nick Fishhouse visitors who park on Insulator Drive) the loss of 108 jobs was just another blow to Baltimore's industrial base. The company's porcelain insulators used by utility companies on its high voltage overland lines was not a winning proposition anymore. Reportedly China can make these cheaper. In 2017 Port Covington was still the big next hot thing and it was generally assumed that Under Armour would snap up this site located adjacent to the envisioned new UA World HQ.

But today UA has scaled it HQ down in size and back in time to a much less ambitious suburban looking campus. And the Locke site went to Sapperstein, a developer (28 Walker Development) with multiple developments in the Canton area. When he filed for a zoning adjustment in November last year, nobody muttered MIZOD or anything about Baltimore's industrial base. No matter that not getting stuff from China any longer is all the rage. The Locke site doesn't have deep water access and was never designated as a MIZOD area, still it is concerning how easily Baltimore's industrial past gets wiped out. And as we shall see below, at times without leaving as much as a trace.

Google satellite screenshot of the Locke site

Today Baltimore's Urban Design and Architectural Advisory Panel (UDAAP) could see that everything about Locke was literally wiped out and made place to what one could call the suburbanization of Baltimore's waterfront. To demolish every last bit of the site's intact industrial building collection is a steep departure from many other successful Baltimore projects which used industrial shells and filled them with new uses, from the American Can to Clipper Mill, Silo Point to Seawall's teacher housing in Hampden. Each of those projects derive an attractive and uniquely Baltimore authenticity that demolition projects like Harbor View or Ritz Carlton never achieved.

Sapperstein's design team, consisting of Hord Caplan Macht Architects, KCI, and Kimley Horn, explained the new masterplan, which the UDAAP panel acknowledged, was the result of careful analysis and work.

The 24 acres are proposed to be filled with a larger apartment building and parking structure and several  hundred townhomes lined up in what looks like an urban grid along the streets extended from Port Covington. Overall over 800 dwellings are proposed. UDAAP's closer analysis revealed that in spite of the urban pattern, this isn't entirely an urban neighborhood, but rather an assortment of homebuilder "products" (developer speak for their housing types) which are neatly sorted by 16' wide, 20' wide, two over-two, front and rear loaded as well as one and two car garage homes, all "products" by national homebuilder K. Hovnanian, one of the large burger chains of generic home production. Only the apartment building and clubhouse would be one of a kind designs. The UDAAP review of the masterplan will be followed by reviews of the architecture.

UDAAP members Osborne Anthony, Pavlina Ilieva, and Sharon Bradley were careful in their critique, but all of them agreed on their assessment that the proposed development was too "suburban". Ilieva suggested to "see the house types more from a pedestrian experience instead block by block". All criticized the typical way how townhome developers do the corners, i.e. by ending the two perpendicular rows of houses with exposed sidewalls "with four random windows". As an enhancement, the design team suggested on every corner a "pocket park" to fill the gap and act as a small stormwater facility. That makes four such pocket parks at each intersection.

The prosed site plan (North is left)
(KCI/HCM/Kimley Horn)

Ilieva observed that "the sides ending in these corners are not architecturally welcoming", she suggested using "primary materials" on the sides as well (suburban developers always put all their expensive building materials on the front for curb appeal) "or develop a corner building".  As proposed, she found that "the streets are disjointed".  Reviewer Sharon Bradeley agreed and added that the corners give the design "a suburban feel". Osborne Anthony, the third reviewer had similar observations. He felt that the proposed concept did not sufficiently relate to what can be expected for Port Covington across Cromwell Street and Peninsula Drive. He called specifically the backs of the waterfront houses "suburban" for their garage driveways facing the street and producing "a lot of asphalt". "Cant you intersperse various townhome types like we come to expect in a real neighborhood, so it looks less contrived" he wanted to know. he also hope that access to the water and the promenade would not feel like "somebody's front yard".

suggested typical corner treatment (top) and "two over two"
townhome facades
(KCI/HCM/Kimley Horn)

Planning Department staff reviewer Tamara Woods ended the review session with the advice to "look at urban rowhouse neighborhoods how they deal with the corners and make it less suburban".

The Middle Branch is clearly the new frontier of waterfront development. The former industrial sites of the Carr Lowry glass company and the BGE facility there, also located on shallow waters, are also proposed for a large townhouse development with a very similar suburban feel.

Sapperstein, who has a large portfolio of urban redevelopments  from McHenry Row to the Shops at Canton Crossing, has shown that he can do urban and suburban. Canton Crossing's success is probably based on its suburban retail convenience. This can't be transfered to urban waterfront living. Potential buyers would probably like to see something different than they can get in the surrounding counties. As Anthony observed, there are only a few opportunities of this type (of industrial conversion) left in Baltimore City. Better to get it right.  A short trip to Washington's Riverfront development along the Anacostia River can provide some valuable hints and so do Baltimore's many examples of integrating our industrial heritage.

Klaus Philipsen, FAIA



Friday, January 7, 2022

Finally: Electric buses coming to Baltimore in 2023

Good news at years end

To provide good news at the end of the year the MTA topped out 2021 with a press release about zero emission buses (ZEB), MDOT Secretary Slater's last public announcement. There was nothing to look at, there was no electric bus in sight and just a press release that the MTA is "launching a transition plan to move to a zero emission bus fleet." Nevertheless, this announcement is worth celebrating, because it represents exactly what had been demanded at the Glasgow climate summit last year: A step from goals and commitments towards actual implementation.  Per orders already put in place, Baltimore will see its first 7 electric buses in 2023.

Unbeknownst to most: There are two full electric
buses in Baltimore run by BGE for its employees.
(Photo: Philipsen)

The electric bus implementation follows goals established in the Regional Transportation Plan and other State commitments about carbon reduction. Transportation plays a major role in combating climate change since transportation is Maryland's largest greenhouse gas emitter. Baltimore also is a dirty air area, in technical terms, a "non attainment area under the Clean Air Act". Diesel exhaust from buses and trucks plays a major role in this.

Implementation steps

Specifically, MTA's December announcement  confirms that MTA would, indeed, comply with the Zero–Emission Bus Transition Act passed in 2020 and effective in October 2021. The Act prohibits the MTA from purchasing any more diesel buses, even if they call them "clean diesel" as they have in the past (already existing delivery contracts can continue and will extend into 2023). The law also requires MTA to provide a progress report by January 1, 2022, that report was submitted and matches the details provided by MTA in their press release. The following steps were announced:

  • Seven battery electric buses will be delivered in 2023 consisting of standard 40' buses and 60' articulated buses. These buses are added  to the current fleet as a pilot.
  • The new Kirk Bus facility will house the new buses and provide the infratstructure needed to maintain, and charge them
  • By 2026 the Kirk division will be converted to handle 100% electric buses
  • Starting 2025 the Northwest Division will be  retrofitted starting 2025 followed by the Eastern Division in 2026 and the Bush Division in 2028.
  • By 2030 50% of the MTA bus fleet (excluding Mobility buses) is required to be ZEB
  • MTA will continue to investigate the use of other ZEB options such a hydrogen fuel cell buses

The implementation steps show, that buying electric buses isn't all there is to do to get to zero emissions. Maintenance facilities need a charging infrastructure and the tools and the equipment to maintain electric buses. Charging hundreds of buses requires an upgrade of the electric grid, additional switchgear and transformers and should also include some resilience strategies for electric grid failure. Relatively long charging times will also require changes in how a bus is handled in the depot. The exchange rate of 1:1 between diesel and battery electric buses will only hold if the schedule allows enough down time for the bus to recharge in full, or if it will be charged on fast charge stations during revenue service. Downtime is also used to clean and maintain the bus, so charging and cleaning should be combined, whereby the bus would remain stationary. This is a change from today where the bus is driven through cleaning, maintenance and fueling stations. Another option would be to swap out battery packages during the stay in the depot.

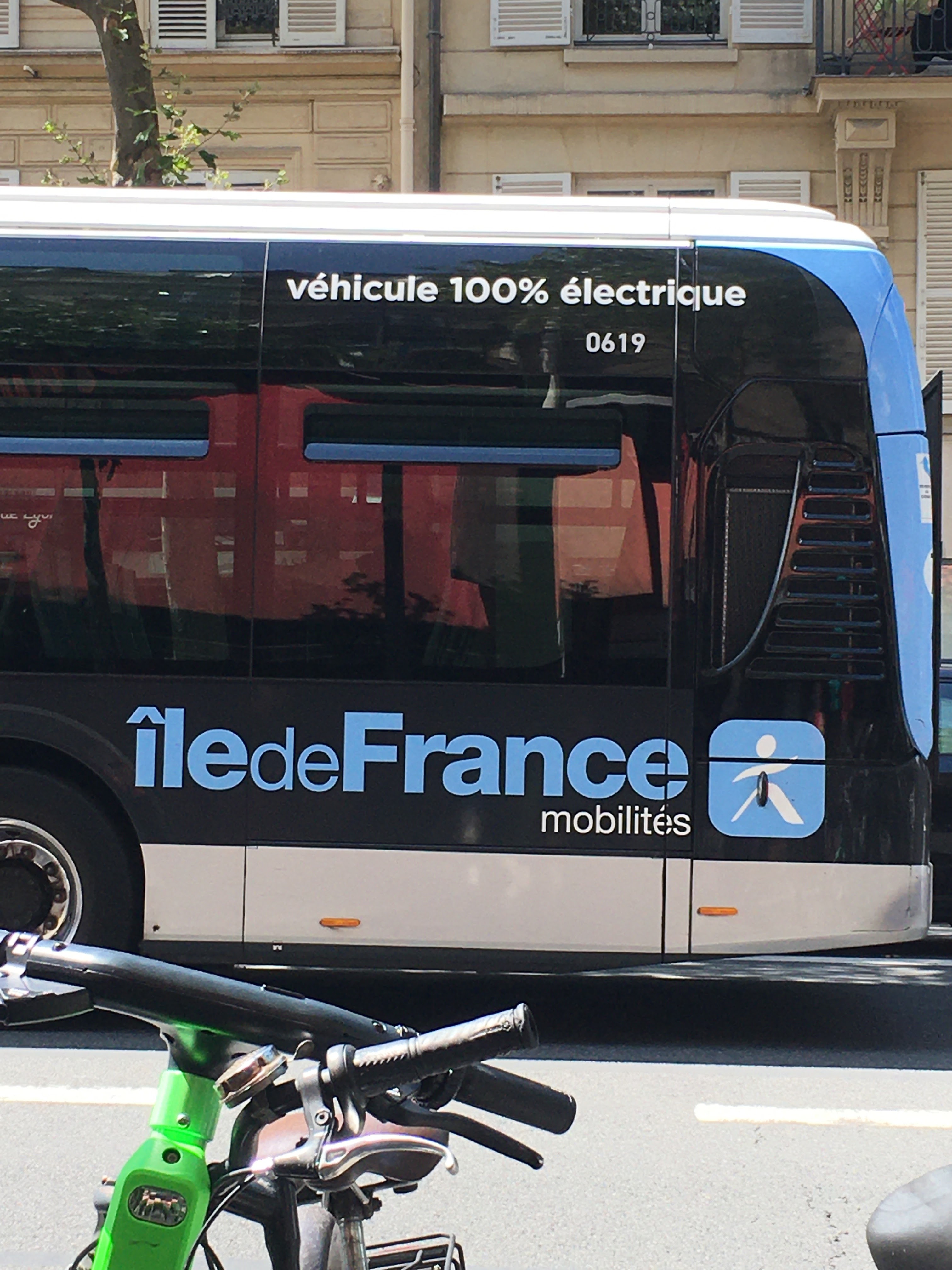

Paris has several bus routes running with full
electric buses (Photo Philipsen)

What will happen after next year?

MTA has over 770 buses, the conversion of 50%of the fleet  by 2030 requires to procure 70 electric buses a year. The current price of a battery electric bus is about $800,000 to $1million, depending on accessories, between 25-50% above the cost of standard diesel buses. Proponents of the conversion argue, that over the lifetime of a bus the reduced operating and maintenance costs of electric buses will more than return the extra initial cost. A cost benefit analysis prepared by MTA based on current known cost did not bear that out, even though operating cost of BEB is shown to be nearly half of that of diesel. but that it cannot make up for the high procurement cost. The MTA report to the State Legislature states that "Analysis provided should be considered a conservative assessment of BEB costs, as the industry in North America is still in preliminary stages of development. Production costs may decrease as production increases to meet future demand and economies of scale are achieved."

MTA's press release states that the purchase of the initial buses  for the "pilot program and the infrastructure for charging them will utilize grant funding from the Low or No Emission Vehicle Program from the Federal Transit Administration, and the Volkswagen Settlement.” It isn't clear, how many buses can be purchased with those sources or how much additional capital will be needed until 2030 to fulfill the requirement for 385 electric buses at cost of at least  $280 million at today's dollars. (It can be expected that the cost of battery powered buses will significantly decrease with advancing battery technology). The Maryland bill says that "the full cost of zero–emission and alternative–fuel buses purchased under this subsection shall be paid from the Transportation Trust Fund."

The MTA ZEB implementation schedule is similar to WMATA's bus fleet transition which also will also buy its first battery electric buses (BEB) for 2023 service with a goal of  full conversion to ZEB by 2045. Since 2018 the only electric bus that can be spotted in Baltimore is operated by BGE to shuttle employees from the BGE headquarters in downtown. With that Maryland is far behind other large cities in Europe or North America where battery powered electric buses run revenue service on designated routes in several large cities for some time. The largest number of electric buses rolls through Chinese cities, foremost the city of  Shenzhen where the entire fleet of 16,000 buses has been converted to electric in 2020.

Electrification difficulties

However, experiences are not all rosy. When Albuquerque NM tried to employ the Chinese BYD buses, they decided in 2018 to return them for non compliance with their specifications, especially regarding the range which was only 177 miles instead of the specified 275 miles. Most buses do about 150 miles a day, but the electric range various widely depending on how hilly the terrain is, how much AC or heat is needed and how heavily the bus is loaded.  In order to overcome the range limit, several transit agencies install charging stations at bus "layover" points, the place where one "run" ends and the next one will begin. Usually these layovers are scheduled to be about 20 minutes. Depending on the charger's capacity and the frequency of full length layovers, those stops can add enough miles to complete its daily routes without having to go to the depot. MTA has selected overhead pantograph charging as the preferred option.

Proterra bus in Broward County 2021 (Photo: Proterra)

The city of Duluth ran into similar problems with their US made Proterra electric buses in 2021. To fix the heating challenge, Proterra retrofitted the buses with diesel powered heaters.  The electric heat pumps had reduced the range by 60%. As anyone with an electric car knows, an electric motor produces no heat and electric heat exchangers can significantly lower the battery's range capacity, which is already challenged in extreme temps. In Baltimore where buses need to master some steep hills, need extreme cooling in summer, and extreme heating on some winter days as today, the current latest model diesel and hybrid buses are powerful enough that they can heat or cool the bus, even when it is very hot or cold and when the bus is packed and has to go uphill. (older models had frequent engine overheating issues in the summer). This is an important comfort feature. Passengers can get very testy if it is too hot or too cold in the bus.

Baltimore had its own electric bus failure: The initial Charm City Circulator was an electric bus with a gas powered small "turbine" for recharging. The innovative bus failed to deliver in Baltimore's summers and got frequently stranded with the batteries depleted. The model was eventually abandoned, forcing the City to buy new buses long before it was anticipated.

Baltimore's original electric "Eco Saver"
Charm Circulator in 2009 (Philipsen)

It will be interesting to see how Seattle will do where King County's Metro Fleet has just finished a larger scale pilot test program for 40' electric New Flyer buses and has begun a second testing phase for 60' articulated electric buses. Seattle's transit agency also operates electric trolley buses, the oldest form of electric buses still in use in some cities such as Seattle, Vancouver and San Francisco. Trolley buses receive power from overhead wires, just like street cars. They are popular with riders for they snappy, quiet and emission free performance and have proven to be very enduring and long lasting.

The Canadian City of Winnipeg switched their battery electric buses for hydrogen fuel cell electric buses (FCEBS). Fuel cells are a widely discussed option for cleaner buses, trucks, ships and even airplanes. They use liquid hydrogen to create electricity in a fuel cell which then charges a battery. The process produces waste heat that can heat the bus without local emissions. Fuel cell buses receive their hydrogen at the depot in a process that is similar to filling a tank with diesel or CNG and have a range of  200-300 miles, sufficient for a day of service. Canada with an abundance of clean hydro electricity made by water turbines is an ideal place to use surplus electricity for generating liquid hydrogen through electrolysis. That option makes only sense as a climate change contribution  if hydrogen is not generated with "dirty" electricity from coal or gas since the  production of hydrogen is quite energy intensive.

The future is electric

Whatever the best technology, diesel isn't any longer it.  Electric buses are now offered by the popular US bus manufacturers, including New Flyer and Nova, brands the MTA currently operates as diesels. The bodies of the BEB models aren't any longer funny looking plastic contraptions, but are essentailly identical to what people are used to in the standard 40' and 60' long versions. BEBs continually improve, are quiet and have substantially more torque than diesel buses, making them quicker and more nimble. Drivers report that they are fun to drive. Electric motors don't need an oil change, have no transmission and no complicated exhaust management which means they last longer and are much easier to

Components of electric bus diagram (Proterra)

maintain. With carbon based fuel prices expected to rise over time, electric buses should also be much cheaper to run than diesel buses that have a gas mileage of about 10mpg or less. The large bus facilities should be equipped with solar arrays that can feed battery back ups so that bus charging can occur even during power outages. For the case that electric buses should continue to present insurmountable technical problems in complying with the agency's specifications, the Zero Emissions Bus Transition Act provides a considerable loophole: The MTA then could buy "alternative fuel buses" which would include buses powered by natural gas, a fossil fuel.

Klaus Philipsen, FAIA

ArchPlan Inc., in collaboration with Wilson T. Ballard engineers, provided 30% design documents for the new Kirk Bus facility.

The article was updated after receiving the Zero Emissions Conversion Report to the General Assembly form MTA.
