Why Complete Streets isn't really about bicycles

The other day I witnessed the following dialogue in my favorite Italian Deli while waiting for my sandwich to be fixed. Customer: "The police can't protect us and they spend their money on bike-lanes" while gesticulating towards the glass door  behind which a recently resurfaced street was in the process of receiving new white lane markers. Mike behind the counter agreed, adding "the guy across the street is paying $6,000 a month for valet parking and now his space is gone". The back and forth went on with both agreeing that this city has lost its way and has its priorities all wrong.
Complete streets is much more than bikes

Ryan Dorsey, the councilman who sponsored the Complete Streets bill which is close to becoming law in Baltimore, would agree that the city has its priorities backwards. But he sees the matter entirely different. And he isn't talking about bicycles.
“We are milking cars which will destroy our planet and city as cash cows and use nothing of those revenues to invest into a better future. I think that is morally wrong”
Dorsey spoke at an early morning presentation of the Transit advocacy group Transit Choices about his Complete Streets bill and placed it under the larger umbrella of his way of thinking about transportation. He said that the bill is about how we prioritize transportation funding and how "we need to be very deliberate on how we use space". He talked about how employee parking benefits should be portable so employees could use the cash value to use them for other modes of transportation.  He mentioned fire-lanes and how the national code for those had mistakenly been applied to all city streets and how another bill of his took car of this. Actually he hardly mentioned bicycles at all.
33% of Baltimore Residents lack access to a car. They rely on public transit, biking, walking, and ride sharing to move around the city. That number is as high as 80% in historically disenfranchised neighborhoods. But Baltimore spends a disproportionate amount of money on streets designed only to move cars. (website)
Not speaking about bicycles makes sense, because in spite of public sentiment, complete streets bills are not about bicycles (or scooters) and it isn't about spending massive amounts of money, either.
Instead, the question of how we use the public space that makes up about 30% of Baltimore's entire real estate, is a question that isn't only entirely appropriate, it is also about economic development and resource protection. This question doesn't lead straight to bicycles unless one's creativity and historical knowledge is so limited that one can't imagine anything going on inside the public right of way than driving a car or bicycling. And unless one subscribes to the typical zero sum thinking that what needs to be good for one (mode) must be bad for the other. This type of thinking is obsolete.
THIS TRANSPORTATION SYSTEM MUST BE DESIGNED AND OPERATED IN WAYS THAT ENSURE THE SAFETY, SECURITY, COMFORT, ACCESS, AND CONVENIENCE OF ALL USERS OF THE STREETS, INCLUDING PEDESTRIANS, BICYCLISTS, PUBLIC TRANSIT USERS, EMERGENCY RESPONDERS,
 TRANSPORTERS OF COMMERCIAL GOODS, MOTOR VEHICLES, AND FREIGHT PROVIDERS
. (Bill)
Dorsey tends towards hyperbole and maintained that his Complete Streets bill is "the best such bill in the country" which immediately evoked the question, what in his bill is so different than in the hundreds of similar policies across the country? Dorsey's answer: Equity. He pointed out that he heavily learned from one of the earlier and most comprehensive Complete Streets policies in the country, that of Chicago. It was used by many cities as a model to emulate, not least for a very detailed and well thought out design manual. As Dorsey pointed out, though, it missed the social impacts that arise if one uses design as the only lens. He said that the "design framework" needs to be complemented by an "equity framework".
Many hearings, a good bill (City Hall)
Passing Complete Streets is one of the most difficult things I've ever done. Our City's streets and sidewalks are truly the fabric of public space that hold our communities together, and this makes them a crucible of competing interests, and a microcosm of our civic life.This law will touch on virtually every aspect of our transportation environment; how it is designed and built, how we prioritize and steward investments, how we engage with community, design for safety and equity, and report outcomes. (Dorsey)

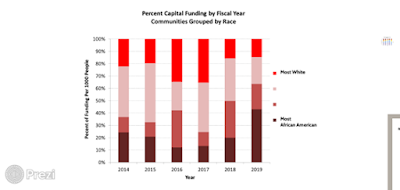

Equity is a very popular word these days, everyone demands it, but rarely is it achieved. Dorsey gave examples: How the popular "Vision Zero" (the goal to have no traffic fatalities) policies have promoted three E's: Engineering, Education and Enforcement, but how, in the end, it was mostly enforcement that rose to the top. In several cities, with enforcement the only emphasis, it was directed dis-proportionally against poorer, disenfranchises African American communities where police has always used trivial infractions as a pretext to stop and frisk. Or how bike facilities and expenses were concentrated in well to do areas siphoning off funds to fix hardly passable sidewalks in poor neighborhoods.
Many potshots against a new paradigm

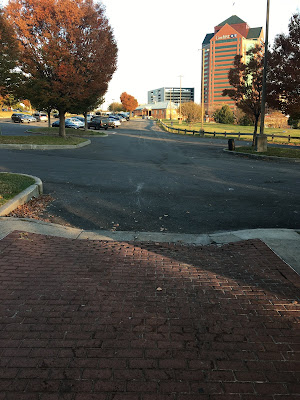

Back at the Italian Deli, a quick view at the freshly paved street shows that the real money went into a new layer of smooth black pavement. The bike lane in question will take some of the excess street width to move parked cars on the east side of the street 5' or so away from the curb so the parking lane would separate the travel lane from the bike lane. Except for a few extra painted lines, there is no extra cost for this, practically no parking is lost and all the excitement of misplaced spending priorities is misplaced. Hardly anyone would disagree with how much City streets need  upkeep to remain passable, benefiting anybody who walks or rides on them, via buses, van, car, bike or scooter.
Traffic emissions and health have a close correlation

Dorsey's bill includes all the right language and sequence of events, including mandating the creation of an Advisory Committee, design guidelines and even the metrics to be used for those standards, performance measures and requirements for project prioritization and implementation and annual progress reports. Equity is written large over all of it. There are even deadlines by when DOT has to produce public participation models and design guidelines (10 months). What could possibly go wrong?

Baltimore has, indeed, an opportunity to become a leader in a comprehensive public discussion which seriously asks how in the next 30 years we want to use 30% of urban real estate for which demand is high, whether people talk about sidewalks, parking, ride share pick up spaces, delivery spots, bus lanes or bike lanes, not to mention automated robotic vehicles, trees, stormwater management, mail boxes, fire hydrants, outdoor vending or cafes or whatever the future may hold.  Aspirations go far beyond the physical, streets affect health, access, and, as discussed, equity. Much to chew off and many reasons for things to not go like planned. Anyone who has lived here long enough knows that Baltimore reality is a tough place for lofty aspirations. Cynicism like the one in the lovely deli is rampant here. But nothing really great will ever be achieved with cynicism. First it takes aspiration and then perseverance and vigilance. If the long journey of bill 17-102 is any indication, there is a majority for those three things in the current City Council.

Klaus Philipsen, FAIA

Wednesday, November 7, 2018

How the election results strengthen Baltimore in the region

While Democrats could not shake Maryland's popular Republican Governor out of his current office, in the Baltimore metro area, two counties flipped from republican to Democrat. the results reflect where the Governor has its base and where his suburban and frequently un-urban policies have found much less resonance.
The big winner: Governor Hogan

Hogan lost in Baltimore City, Prince Georges and Montgomery County but won everywhere else.

In Baltimore City Hogan had 54,136 votes and Jealous had 113,142 (without absentee ballots). In Prince Georges County the ratio was 209,485 to 83,595. In Montgomery County Jealous had 193,887 votes relative to Hogan's 158,573. However, in spite of what many observing demographic change predicted, those urbanized areas were not enough to carry a Democrat into the Governor's mansion. In Anne Arundel (69.2% Hogan) and Howard Counties (56.9% Hogan), the incumbent enjoyed solid leads.

Meanwhile the political geography of the Baltimore region changed quite significantly thanks to three new county executives coming into office in the surrounding large jurisdictions, two of those flipping the office from Republican to Democratic. This has the potential of creating a strong block of somewhat shared values in the heart of our region not known for a lot of regional thinking. In a time of ever increasing metropolitan growth and increasing urbanization worldwide, regional collaboration is more important than ever. Additionally, local government is increasingly expected to jump into the breech when national policies fail or dismantle liberties or environmental protections.
"Johnny O", under 40 and full of ideas for Baltimore County


Reinventing the suburbs

Many experts predict that the suburbs will be tomorrow's ghettos unless they are able to re-invent themselves. The suburbs cannot be sustained and won't be picked as a place to live by the younger generations because they don't over the urban amenities people increasingly expect, at least so the thinking goes.  It stands to reason that a core city with great architecture, parks, art and culture institutions and world class universities would be an attractive partner for jurisdictions which lack most of those assets. None of the jurisdictions around Baltimore City have truly urbanized areas with the exception of Annapolis, Towson and Ellicott City.  Except, in the past the smart collaboration hasn't happened except for small gestures such as Baltimore County's support of some cultural institutions. For the most part it was each for himself, no matter that the shrinking city can offer plenty of development space that the growing counties are increasingly missing. It would be real smart growth to stick jobs and some of the population growth into the core city instead of paving over large parts of outlying farm-fields in the counties, such as the embattled Turtle Run development in Anne Arundel which may have been instrumental in Steuart Pittman's surprise win. There are certainly metro areas in the US, where regional collaboration occurs including even some tax revenue sharing in cases where the development transfers result in revenue imbalances.
Calvin Ball (right) wins Howard County Exec race, Kittleman (left) concedes
in person, a rare gesture in partisan politics

While nobody doubts that Annapolis is a lovely small town, Towson still needs to work hard before anybody would call it a real town, no matter that the mall is called Towsontown. In Howard County there is Columbia and Ellicott City. All of those places are in various stages of seriously reinventing themselves for a variety of reasons. Annapolis has Parole as growth area (which actually is outside the city proper), Towson has an array of aborted plans to make the place really urban and walkable, Ellicott City is struggling how to exist in a flood prone valley, Columbia is midway in a comprehensive strategy of creating an urban downtown. None of these peripheral urban spaces are connected to the core city with any kind of robust transit.

While concentrated development can result in true urbanity and be successful in protecting open landscapes from sprawl these reinventions won't replace Baltimore as a cultural and economic hub. Synergy and collaboration would be much more successful for city and counties than cut throat competition.  One can only hope that the new, young and dynamic County executives will pursue regional collaboration with much more conviction and, hopefully, creativity than the previous crop.
An upset in Anne Arundel County for Steuart Pittman

Without that, they won't be able to compete with the much better planned counties around Washington DC such as Montgomery County (Bethesda, Silver Spring or the mall conversion of White Flint or Arlington County with very active urban nodes around Metro such as Pentagon City, Clarendon,  and Crystal City which was named as a potential place for Amazon.

Regional transportation

Of course, transportation is where the popular Governor is not at all on middle ground but is pursuing the policies of the 1950's, consisting in curing car addiction with enticements for more driving. The new Capital Transportation Program (CTP) diminishes transit to a 25% share, far down from the peaks of the O'Malley era when transit nearly reached parity with the other modes and included significant transit expansion projects.

It is in the area of transportation where the election results and the strong block of Democratic Executives may matter the most. Federal transportation law mandates regional planning organizations (MPOs) designed to coordinate local transportation in an efficient manner. This prevents parochialism in a field in which jurisdictional boundaries are quite meaningless, just as in some other larger infrastructure networks such as the power grid.

Mayors like to say that there is no Republican or Democratic trash, just trash that needs to be collected. This should hold true for transportation as well; sadly, the topic has been very politicized in our region with little chance of a rational discussion about the most effective ways to achieve mobility, access and equity. When MDOT Secretary Rahn was recently asked by City Council member Ryan Dorsey if there was any goal towards a higher transit share and fewer single occupant vehicles, he was told "we don't do social engineering". This term comes straight from the playbook of ultra conservatives like the Koch brothers who describe any attempts of reducing auto dependency or sprawl development as social engineering and "telling people where to live" or how to move.
TIP document prepared by BMC

In that situation the mandated influence of local government on regional transportation comes in handy, especially in a State where the operation of public transportation is heavily concentrated in the hands of the State. Even though the confusing and often overlapping array of plans and control mechanisms coming from regional and State agencies confounds citizens and sometimes even transportation officials, the mandated collaboration between the MD Department of Transportation (MDOT) and the Metropolitan Planning Organization at the Baltimore Metropolitan Council (BMC) provides an opportunity for balance between the very divided opinions about effective transportation. BMC is a representation of all local governments in this region. The change in who will head those up will be felt.

While regional planning has fallen out of favor in spite of continued growth and urbanization it should actually be more important than ever. The results of the midterm election  present an opportunity to strengthen Baltimore City's standing in the region and improve access and transportation at the same time. That Mayor Pugh will be the chair of the BMC this period will further help.

Klaus Philipsen, FAIA






Wednesday, October 31, 2018

How MARC commuter trains could become premier urban transit

With the Red Line off the table, there is not a single new rail line in the next six year transportation plan (CTP) for the Baltimore region, in fact, no transit expansion at all. A new regional transit plan is now mandated by the legislature and may change that (work on it will begin soon), in the meantime it is obvious that the best thing to do in the immediate short-term is to make best use of the rail systems we have. Arguably that is not happening.
The new CTP: Only 25% of transportation funds go to transit

This article is about the rail service with the maybe largest untapped potential.

What is it?

It operates on existing long distance or freight tracks and serves several city centers but it also has stations in the suburbs. It connects to Amtrak, light rail buses. Large parcels of land surround its stations. It has siblings all across the United States and which were, with two exceptions, all born in one single decade, the 1980s. The Maryland version ranks #9 in the nation by ridership in spite of the state's small size and large rural sections. It is operating speeds of up to over 100mph to be increased to 125mph, making it reportedly the fastest of its kind in the country.
2 diesel engines, four coaches: Too much railroad, not enough Metro

We are talking about commuter rail, of course, known in Maryland as MARC, a system that uses Amtrak and CSX tracks, and is managed by the same entity which runs Baltimore's buses, light rail and metro, the Maryland Transit Administration. The current administration has come to call the system a "virtual railroad" since it neither owns the tracks nor employs the engineers and conductors which run it nor conducts its daily operations, even though its music plays on the platforms. Born in 1984, the system has grown to the current level of service where it is 200 miles long and has 42 stations and slightly less tahn 40,000 riders a day. (Ridership fell recently). It operates 3 routes and dispatches 96 trains a day. Only the system serving the New York, Chicago, Philadelphia, Boston and LA metro areas predictably beat MARC in track length and riders. MARC reaches far out to Perryville in the north, and Martinsburg and Frederick in the northwest but chiefly connects Baltimore with Washington on two alternative routes, the Penn and the Camden lines.
July was a bad month with 74% on-time preformance

Until recently, MARC was the darling among the MTA modes, its trains ran reliably, tickets were cheap and service was expanded to run all day, later into the evening and also on weekends. Lately, the service suffered from many disruptions which left riders furious. (MARC delays were 'awful' this summer. There's been some improvement, but problems still linger. Baltimore SUN, Oct 4, 2018) Many of the delays come from (Amtrak) track work and insufficient drainage which became obvious due to the heavy rains. There are also about a dozen trains per month failing due to mechanical or equipment failures.
This article addresses untapped potential of MARC beyond the problems of this summer.

The long range MARC plans

The obvious question is, how could MARC be more? This question occurred also to Maryland's transit officials, at least back in 2009 when they prepared a long range plan and in 2013 when it was updated, both happened before the current administration came into office. This begs the additional question, what does the Rahn-Hogan team think about the MARC plan they inherited and are they willing to follow through with the suggested investments?
MARC long range plan updated 2013

The first phase of the plan envisioned a new Halethorpe Station, an expansion of the West Baltimore Parking lot, procurement of 54 MARC IV multi-level railcars to replace old coaches plus increase number of seats for $180 million, procurement of 10 new diesel locomotives to replace electric locomotives  for $40 million, and the overhaul of 63 MARC III railcars for $34 million.

Rahn's MDOT notes that most of these projects were accomplished, including MARC IV Railcars, new SC-44 “Charger” locomotives,  the construction of a Wedge Yard (midday layover for Brunswick Line),  positive train control, plus new real time arrival signs, public address systems, ticket vending machines (Summer 2018) and mobile ticketing (Summer 2018). Still, the bulk of those investments goes back to decisions of the old administration and their funding plans. Many smaller steps were added. Two larger MARC improvements that were previously planned for a time after 2019 were moved up:  new station facilities at Camden and BWI Stations.
MARC: Reaching wide and far: It has urban transit potential

Dropped from the plans of the previous administration was a new Bayview Station and a modified West Baltimore Station, originally designed as intermodal stations with connections to the Red Line. Also dropped a MARC maintenance facility. After the Red Line has been cancelled, officials don't see any longer the need for a Bayview MARC station or a better West Baltimore MARC station, a problematic stand as we shall see.

Improvements not yet in place, but listed in the long range plan for the time after 2020, include shorter headways in the peak hours, shortening headways during off peak to 30 minutes and the insertion of express service. More trains lead to capacity issues thanks to shared tracks. An important element of the future plans is, therefore, an additional track which would allow separating the fast Amtrak trains from the slower MARC trains (two tracks each, for a total of four on the Penn Line) and a Washington terminal expansion. A third track on parts of the Brunswick line would untangle MARC service from freight service. Also needed is the replacement of the two track Baltimore tunnel known as the B&P tunnel, a costly part of Amtrak's plans for the Northeast corridor from which Amtrak and MARC would greatly benefit.  In total the long range plan assumed MARC investments totaling $2.35 billion by 2050, about the initial cost of the new Purple Line light rail line. (The B&P tunnel is estimated to cost $4.5 billion, cost not currently in any budget). None of those essential capacity enhancing items are funded in the CTP.

What is missing?

The MARC long range plan (there are no such plans for Metro or LRT, in spite of earlier promises by MTA to get those prepared) looks like an excellent document in the transit diaspora we have now. But even those documents from a much more transit friendly administration lack the excitement of a well defined vision. A real vision would elevate the service from being a stepchild of Amtrak and CSX to the status of a premier interurban form of 21st century transit. Sorely missing is also what is natural to maturing transit systems, the transformation from a park and ride transit system to one that fosters development at it stations. If Maryland won't get any new rail transit, it should get at least new development at existing rail stations. The reality is quite different: Except for some rather tepid transit oriented development at Odenton and a few bolder attempts at New Carrolton, MARC train stations are surrounded by a sea of parking (or nothing at all). The problem is common for US commuter rail systems. Studies show that for each rider taking up one parking space transit could get four more riders if the parking space were converted to TOD.
Paris RER: Regional commuter trains, in the city like Metro

It isn't easy to find stellar commuter rail systems applicable to our conditions, especially in the US where passenger rail always takes second place behind freight. Additionally, definitions are fluid. What is metro or subway, what light rail, what commuter rail, what intercity high speed rail? All these modes serve large metro areas and they often overlap in the way they provide service just like one can reach Washington from Baltimore via Metroliner, Acela and MARC.

To see how beefed up commuter rail transit could look, one has to go New York or abroad: Paris, Sidney, Shanghai or Munich. The best commuter systems seem to be the ones which operate in the center similar to an advanced metro or light rail but become more like a railroad in the periphery.  The noted cities are examples for this approach.

In my hometown of Stuttgart (and many other large German cities) commuter trains (S trains) have been operated  by the German Rail system for decades much in the same way as US commuter trains, i.e. as an overlay of service on the long distance rail system. Starting in the 1970s, several metro S systems were expanded beyond the traditional tracks to move underground in high density urban cores. In the case of Stuttgart, S trains tunneled underneath the dead-end train station, traverse downtown with several stops and reconnect with the circumferential main lines on the other side of town.
Sleek bi-level cars in Sydney

How would an ambitious MARC system look?

It isn't to be expected that MARC would tunnel anytime soon under Washington, even though, Washington's Metro could certainly use some relief. But a more seamless service integration with Virginia's VRE commuter system should be possible, since both already serve Union Station (Through running trains).  To the north MARC service could be extended to connect to SEPTA commuter trains, making the entire corridor from NYC to Virginia commuter rail territory.

In Baltimore, by contrast new tunnels are planned as part of Amtraks NEC plans, except without a station. The originally planned new Bayview Station and also the once suggested new East Baltimore station at Broadway would make MARC a bigger part of Baltimore's urban transportation without costly new lines or tunnels.  And for the proposed replacement of the ancient B&P tunnel, MARC could relatively easily include a station at Penn and North as an underground intermodal transfer to the already Metro station there. This would be especially important, since the area is still waiting for a convincing response to the 2015 unrest and because MARC doesn't connect to Baltimore's Metro anywhere. Both, a station at Broadway and a Penn/North station would provide such intermodal connectivity. With six stations in the city (Bayview, East Baltimore, Penn Station, Penn North, West Baltimore and Camden) MARC would be a viable means of rail transit in the city with Halethorpe and Martins Airport providing access to the county.
modern bil-level self propelled, electric commuter train, Germany

In spite of all the engine and coach replacement, MARC doesn't have cutting edge rolling stock. In the long run it doesn't make sense that MARC operates with diesel engines on an electrified line, when everyone tries to electrify transportation. The reason that Amtrak charges exorbitant electricity fees must be resolved politically, even modern diesel-electric engines aren't clean enough, especially when they idle for hours in the heart of the city. Suburban trains in Europe are self propelled electric trains, many of them sleek bi-level coaches with wide doors and level boarding for quick getting in and out, a far cry from MARC trains and their narrow manually operated doors and steep steps at stations without high platforms. Many valuable minutes could be shaved off from the run-times to DC if trains could load and accelerate faster. With additional trains running, express trains which don't stop everywhere could achieve even higher speeds and further reduce trip times.  Of course, it also doesn't make sense that MARC trains are maintained in Amtrak facilities allowing Amtrak to hold MTA over the barrel everytime a maintenance contract expires. The fact that the CTP has eliminated further work on MTA's own MARC maintenance facility doesn't bode well for an attempt to run the system with less dependence from Amtrak and CSX.
West Baltimore MARC: A bus station and three parking lots but no TOD

All in all, MARC must become much more like a cross between Metro and Acela and be much less like an old fashioned railroad.  This would require to run MARC more like NJ Transit, with some own tracks, their own rolling stock and their own operations management. Such as system could be a huge boost for Baltimore and do a lot to tie the mega statistical area of DC and Baltimore closer together. MARC as the spine for regional smart growth was for a short time a vision discussed in the context of BRAC, the base realignment concept that brought so many additional jobs to Maryland. The idea is still viable. It is the first thing that should go into the new regional rail plan as a relatively low hanging fruit.

Klaus Philipsen



Monday, October 29, 2018

Can Maglev trains make the US a leader in high speed rail?




In the context of the wide outreach to politicians and the media by the Japanese rail consortium to promote their magnetic levitation train system (Maglev) for use in the US, the Baltimore SUN was in Japan to test the trains and investigate the topic in detail. The first route is supposed to run between Washington and Baltimore. The Sun covered its findings in a detailed and largely impartial report which covered three and a half pages in its print section. However, the author of this article believes that many relevant questions were not asked. This article is intended to put them on the table.

Maglev, the big disrupter?

When it comes to magnetic levitation trains proponents stress the superlatives: The speed (311 miles per hour), the fact it can't derail, the precision (0.5-3.7"), the cost ($10-15 billion for 30 miles between DC and Baltimore), and the technology itself.
Happy for the support: Northeast Maglev CEO, Wayne Rogers with
Maryland influenzers Mike Miller, Kevin Plank and Ben Cardin (SUN photo)

Comparisons usually reach beyond the earth:  There is inevitable talk about Kennedy's challenge to put a man on the moon. Comparisons are also made to earlier technological revolutions: How those who funded and built the first US passenger railroad (starting in Baltimore) outmaneuvered those who continued building canals. How the automobile was not just an improved horse carriage. How adopting the Japanese technology would somehow move the US to the front of high speed train technology. Today "disruption" has become the mantra for entire industries and the inventor Elon Musk sends a Tesla into orbit, the promoters of Maglev trying to direct some of this glow on their trains which still haven't really caught on.

How Maglev works

The technology is, indeed, a superlative and some basics are needed to understand what chances Maglev has to be a disrupter in transportation. The key technological difference: Unlike conventional trains, there isn't an engine or a set of electric motors pulling the train along steel tracks but electricity is used to create magnetism between the guideway and the train which makes it float and move. While traditional electric motors have a coil, in the "linear motor" of Maglev the coil is unspooled along the guideway.
 Japanese Maglev guideway: A big concrete trough
The magnetized coil running along the track, called a guideway, repels the large magnets on the train's undercarriage, allowing the train to levitate between 0.39 and 3.93 inches (1 to 10 centimeters) above the guideway. Once the train is levitated, power is supplied to the coils within the guideway walls to create a unique system of magnetic fields that pull and push the train along the guideway. The electric current supplied to the coils in the guideway walls is constantly alternating to change the polarity of the magnetized coils. This change in polarity causes the magnetic field in front of the train to pull the vehicle forward, while the magnetic field behind the train adds more forward thrust.
From Federal Railroad Administration website

Maglev trains float on a cushion of air, eliminating friction. This lack of friction and the trains' aerodynamic designs allow these trains to reach unprecedented ground transportation speeds of more than 310 mph (500 kph), or twice as fast as Amtrak's fastest commuter train. (How stuff works)
The history

Maglev is not a new technology. It has inspired the fantasy of engineers and politicians for a at least a century. The idea to use it for a new generation of trains is least 50 years old. In spite of all that time, only two Maglev test tracks were built (one in Germany, one in Japan).  Only one short spur of the German system has ever gone into service for revenue: The Shanghai airport line. The Japanese finally have a longer route under construction. It will connect Tokyo to Nagoya and is planned to open in 2027 for an estimated cost of $80 billion. A later extension is planned to go to Osaka. The Japanese system uses cooled superconductors for the massive amounts of electric energy needed to charge the magnets and create the levitation and propulsion. This reduces electrical resistance and saves some energy, but is in itself a feat of technology since it requires cooling the magnets to -480F, not something a regular refrigerator can do.
German Maglev and guideway: A different concept
(Photo: Philipsen)

There are several reasons why Maglev has not become the prevailing technology for high speed trains anywhere and why China builds an entire high speed rail (HSR) network with conventional steel wheels on steel rails and not with Maglev, no matter how much magic the patent holders attribute to this particular disruption. The reasons are technical, economical, environmental and most importantly, reside at the most relevant question in transportation, its purpose and need.

Environmetal issues

In critical reporting about Maglev the media enlist the standard environmental issues of displacement of people, vibration, noise and impacts from tunnel construction. This gives the impression that Maglev would be the victim of the usual NIMBY arguments leveraged against any other transportation project as well. From what is public knowledge, the environmental impacts of Maglev would not be higher than with conventional rail. The higher speed won't lead to more vibration and noise because the air cushion eliminates the biggest source of noise and vibration: Friction. Tunnels and bridges will be constructed the same way as in conventional rail. At grade service problematic for anything that moves near or above 300mph which makes any version of surface rail more disruptive than traditional railroads allowing at grade crossings and the like. More problematic is the technology itself. It requires extensive guideway construction and high amounts of electricity.
[Maglev] constitutes not only an extraordinarily costly but also an abnormally energy-wasting project, consuming in operation between four and five times as much power as the Tokaido shinkansen,”Hidekazu Aoki and Nobuo Kawamiya
Scale

When innovators talk about disruption, they also talk about scale. Without scale Maglev can't be a true disrupter. Scale occurs when after initial pilots a new technology becomes cheaper and inevitable because of mass application. That has happened to computers, solar cells and mobile phones. There is no hope that Maglev could embark on such a path. The 50th Maglev would be just as expensive as the first, its energy consumption no less. Unlike semi-conductors, Maglev trains are a full and complete system and as such don't allow incremental improvement.
Planned Japanese Maglev: First ever long distance revenue service

If new ways of doing magnetic levitation or propulsion would be developed, it would make the current system obsolete. Just as the German and the Japanese system are not interchangeable, Maglev technology is highly proprietary and unique. So much so, that it is incompatible with every single other mode of transportation in use today. This is no small problem. In fact, it is probably the reason why no country has implemented Maglev as a system. The unique linear motor induction technology raises even the question whether Maglev is connectable with itself with switches and a network of guideways as in a traditional rail network.

The comparison with conventional rail highlights the network question very well: Conventional rail is by and large compatible from country to country and even between different modes such as streetcars, light rail, commuter rail and high speed rail. This not only allows light rail or commuter trains to travel on the same tracks as Amtrak trains, but it also allows trains to  cross borders to Canada or, in Europe across many countries. Operation and technology commonalities allows also incremental improvement and many different types of engines, coaches and train sets to operate in a mix. Europe, Japan, and recently China have high speed trains in operation, which can reach speeds very close to those of a Maglev train. The French train a grande vitesse (TGV) may not excite engineers as much as a super-conduction Maglev train, but it operates every day on a large network with speeds of 199 mph and in can roll into the same train station next to a slow commuter train.

Resilience

In a time when there is a lot of talk about resilience, vulnerable systems are questionable. High speed systems of any kind are far more vulnerable than traditional trains but Maglev poses its own set of vulnerability. Dependence on one single manufacturer and its patent is a huge vulnerability. The fact that Maglev trains can't derail, can't collide with each other (at least not on the same track) and may be thus safer than conventional trains doesn't eliminate its vulnerability as a monopoly.
There are other vulnerabilities: If the power goes out on a conventional electric train, a diesel engine can be dispatched to push it to its destination. Maglev has no such option. In fact, on traditional tracks almost anything can be dispatched, including construction equipment, cranes and emergency vehicles provided from a wide market of sources. For Maglev all of this would have to be sourced from the single manufacturer.

The Maglev guideways are unique and much more complicated to build than steel rails on ties on rock ballast, or even than steel rails mounted on continuous concrete slabs. While it is true, that conventional high speed rail puts enormous stress and wear on tracks and wheels, these items can be calibrated and maintained on a daily basis without too much difficulty and cost. Maglev guideways have much less wear due to the lack of direct contact, yet, they cannot be easily calibrated either. Besides, the Japanese Maglev trains still have contact wheels for low speeds up to 70mph.
Diagrams explaining the difference beteween a conventional
electric train and Maglev. (FRA website)

Meanwhile the Japanese u-shaped concrete trough poses drainage, ice and snow challenges. Like any big concrete structure it has all the well known problems of tolerances, concrete fatigue, cracking, corrosion and deterioration from stray current, issues that plague bridge engineers around the world even without those super high speeds.

It is actually only consistent that Elon Musk's Hyperloop, also proposed for the DC to Baltimore connection, is in many ways more innovative by addressing those problems. It deals with air drag which grows in square to the speed by suggesting a vacuum tube. He eliminates much of the concrete guideway through his efficient tube construction and he replaces a continuous linear motor propulsion system with intermittent boosters. His entire system would be underground and never be exposed to the elements. His tunnels and passenger compartments are smaller and allow customization of origins and destinations. Of course, his system is even more conceptual than Maglev. The matter of customization gets us to the most important point, the transportation purpose.

The transportation purpose

Maglev proponents promise to take a bite out of congestion and air pollution and getting people faster to where they want to go, all items which score under what transportation experts call "purpose and need". There is no doubt that the Northeast corridor is congested, whether one talks about roads, airports, or even trains. Could Maglev really make a difference?
No doubt, many people cherish train travel over flying or driving because of its superior experience which includes seeing the landscape, being able to eat a real meal on the train or to walk around. Amtrak already beats air travel within the Northeast corridor in passenger volume and is already the only corridor in the country where the train is faster than the car.
German ICE train in Frankfurt train hall: All trains under one roof

Anybody who ever planned transit or transportation knows, that the users have totally different concerns than engineers and operators.  Take station frequency. Today, the Northeast corridor between Boston and DC is Amtrak's most traveled corridor. It accommodates fast and slow trains and occasionally even a freight train. While this may bother operators and engineers who tend to look at speed, it allows a seamless system in which users can easily move from one type of train to another on the same corridor. Stations slow trains down, but the nicest train is useless if there is no nearby station. The fact that intercity, regional and local trains all move within the same corridor and network gives almost anybody in the corridor access.

This may sound trivial, but consider the proposed Maglev between Washington and Baltimore. It is supposed to stop only once, at BWI airport, and even that one stop is one too many on a 310 mph ride over a 30 miles distance.  As any rider on the current commuter trains knows, the bulk of riders on the way to DC don't use Amtrak but the local commuter train which allows them to board downtown but also on the many stops in between.   If the Amtrak Acela doesn't stop at the Newark airport, it is easy to take a local train from the city to the nearby airport stop.
Alignments: DC to Baltimore
What’s next
A federal analysis of the two proposed routes is expected this fall.Next year, a draft Environmental Impact Statement is expected to identify a preferred route. The public can comment.By 2020, the Federal Railroad Administration is expected to issue a final report saying which line, if either, should be built.If political leaders in Washington and Annapolis decided to back the project, its developers would have to come up with $10 billion to $15 billion to pay for it. (Baltimore SUN)
